RX Industries

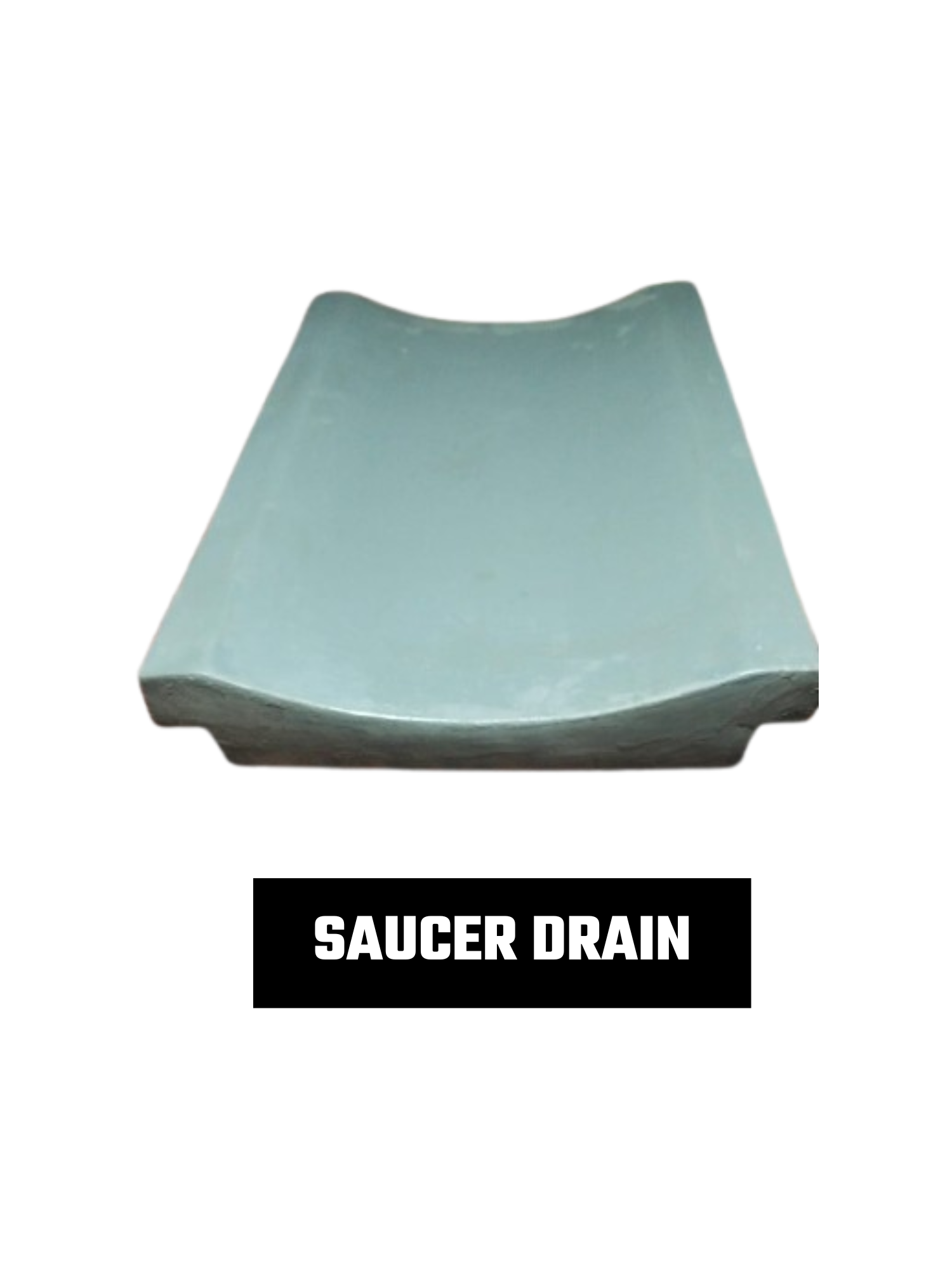

Frp Saucer Drain

This product is currently out of stock and unavailable.

SKU: N/A Category:

RX Industries’ FRP saucer drains are lightweight, corrosion-resistant, and durable, perfect for efficient drainage in urban and industrial environments. RX Industries provides customizable sizes, meeting industry standards. RX Industries ensures high load capacity, slip resistance, and low maintenance for reliable performance.

Benefits of Frp Saucer Drains

  • Durability : Made from high-quality materials, RX Industries’ saucer drains are built to last, withstanding harsh weather conditions and heavy loads.
  • Corrosion Resistance: Our saucer drains are resistant to rust and corrosion, making them ideal for long-term use in outdoor environments, including high-moisture areas.

  • Low Maintenance: The smooth surface and design reduce the chances of blockages, ensuring that the drains remain functional with minimal maintenance.

  • Cost-Effective: Our saucer drains are designed to be budget-friendly, providing an affordable solution for large-scale drainage systems without compromising on quality.

  • Eco-Friendly: The efficient water management properties of our drains help prevent soil erosion and reduce the risk of flooding, promoting a more sustainable environment.

  • Easy Installation: RX Industries’ saucer drains are designed for easy installation, saving time and labor costs during construction projects.

  • Aesthetic Appeal: Besides functionality, saucer drains also contribute to the clean, neat appearance of landscapes, pavements, and driveways, enhancing the aesthetic of both residential and commercial spaces.

Frp Technical Diagram



Physical Characteristics Frp Saucer Drain

CharacteristicDetails
Shape AvailableCircle, Square, Rectangle, and Customized
Working Temperature-10 to 120 degrees Celsius
NoiseReduced noise and vibration
ConductionNon-electricity and heat conduction
ColorStandard gray (customization available)
Surface TreatmentAnti-slip, anti-UV
TechniqueMold Pressing
PackingCardboard or as per customer's need



Technical Specification Frp Saucer Drain

DescriptionR.X. Manhole Cover Performance
Longitudinal Strength250 - 600 MPa
Compressive Strength300 - 600 MPa
Stretch Modulus25 - 35 GPa
Break Elongation Ratio1.3 - 10.0%
Bending Strength700 - 1400 MPa
Poisson's Ratio0.35
Relative Density1.11 - 1.15
Water Absorption (24h)10 - 30 mg



Frp Manhole cover

Frp Saucer Drain Load Testing

FRP/GRP/COMPOSITE products are tested for LD (2.5/5 Mt), MD (10 Mt), HD (20 Mt), and EHD (35 Mt and above) load-bearing and permanent set as per BS EN: 124IS: 1726 (1991). BS EN: 124 is a testing code worldwide for manhole covers in cast iron, ductile iron, and other materials.

Permanent Set is a multiple loading test to determine the permanent deformation in covers after multiple loading within a short time as specified in the code.

We have an in-house testing facility where we conduct regular tests batch-to-batch for quality consistency in the product.
